TRACTION BATTERIES
FOR ELECTRIC
VEHICLES
Wide range of solutions for different types of electric vehicles
Learn more
LITHIUM-ION BATTERIES FOR ELECTRIC TRANSPORT
RENERA is a manufacturer of modern lithium-ion energy storage systems.
The competence and experience of the implemented projects allow RENERA to provide a full range of services to equip any electric vehicles with lithium-ion batteries of our in-house design and production.
3
PRODUCTION
SITES
SITES
3
R&D CENTERS
4400MWh/year
PRODUCTION CAPACITY
BY 2025
BY 2025
8500MWh/year
PRODUCTION CAPACITY
BY 2026
BY 2026
>100
PATENTS AND KNOW-HOW

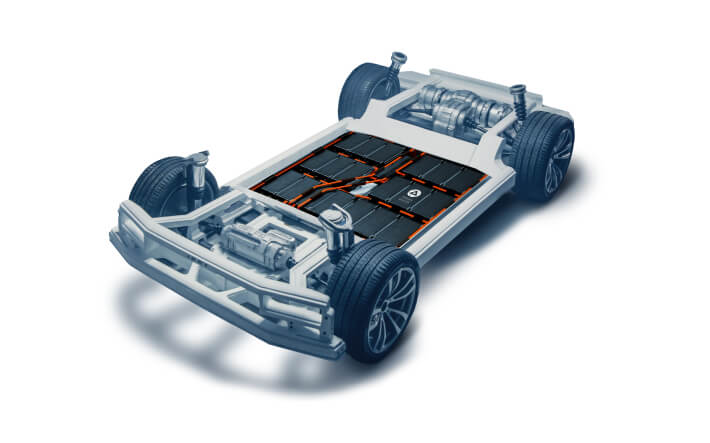

RENERA SOLUTIONS FOR PASSENGER ELECTRIC VEHICLES
Integration of battery into vehicle platform during design phase
Scaling and tailoring the battery to the customer's needs
HEV
Hybridelectric vehicles
BEV
Battery electric vehicle
FCEV
Plug-in hybrid electric vehicle
PHEV
Fuel cell electric vehicle
NTERNATIONAL QUALITY MANAGEMENT SYSTEM (QMS) CERTIFICATES
RENERA'S MODERN TRACTION BATTERY CONCEPT
ENERGY DENSITY
260 Wh/kg (on the cell level)
MONITORING SYSTEMS
Proprietary BMS
TEMPERATURE RANGE
-30 to +50
MODULAR ARCHITECTURE
Easy scaling
OPTIONS
Custom development
SERVICE LIFE
up to 10 years
FAST CHARGING
Up to 100 km range in 30 min of charging
VARIANTS OF TRACTION BATTERIES FOR PASSENGER ELECTRIC VEHICLES

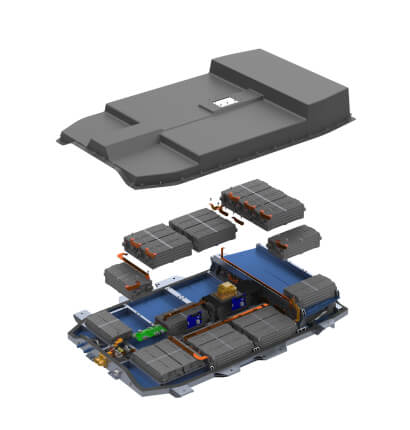

- Type 1 batteries
- Energy intensity66,6 kWh
- Energy density160 kWh/kg
- Operating voltage range270–420 VDC
- Charge up to 80%40 Min
- Weight420 kg
- Ingress ProtectionIP67
- ChemistryNMC
- Complies withUN100.3
_BOM_2%201.jpg)

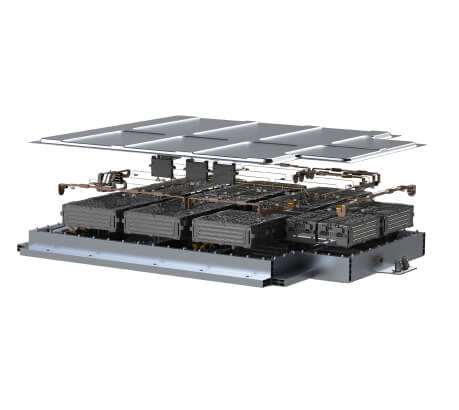

- Type 1 batteries
- Energy intensity66,6 kWh
- Energy density162 kWh/kg
- Operating voltage range270–420 VDC
- Charge up to 80%35 Min
- Weight410 kg
- Ingress ProtectionIP68
- ChemistryNMC
- Complies withUN100.3
RENERA BATTERIES ARE DESIGNED IN COMPLIANCE WITH INTERNATIONAL STANDARDS
- ECE R100 Rev 3
- UN 38.3 Rev 7
- ISO 26262
- ISO 21434
- GB/T-18384-2020
- GB/T-38031-2020

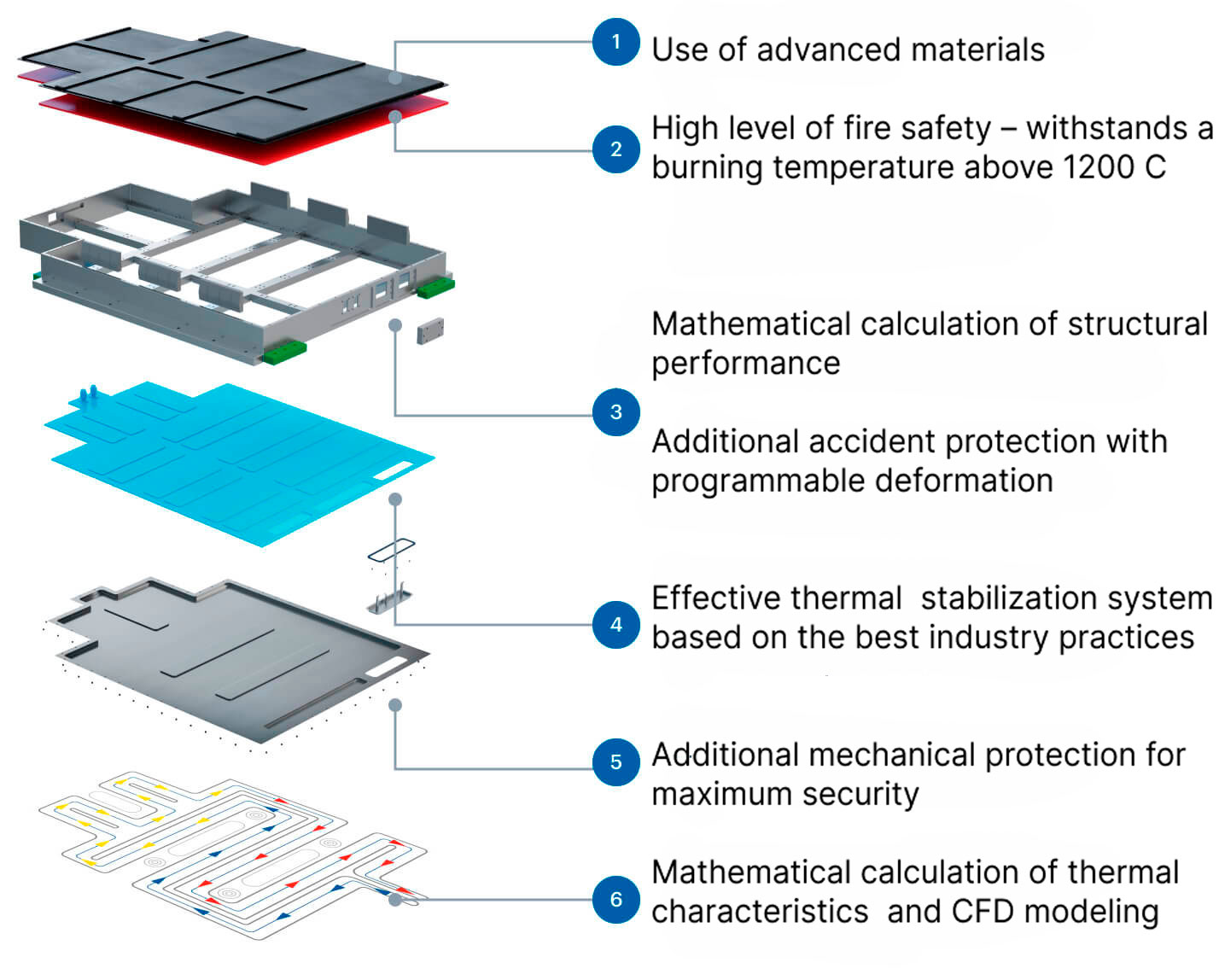

RELIABILITY OF RENERA BATTERIES MEETS
INTERNATIONAL REQUIREMENTS
Use of advanced materials
UHigh level of fire safety – withstands a burning temperature above 1200 C
Mathematical calculation of structural performance
Effective thermal stabilization system based on the best industry practices
Additional mechanical protection for maximum security
Mathematical calculation of thermal characteristics and CFD modeling
LEARN MORE ABOUT
RENERA'S CAPABILITIES
CHOOSE SUITABLE SOLUTION FOR YOUR BUSINESS
